SW-20
| Diameter | 20 mm / 23 mm (option) |
|---|---|
| Headstock stroke | 205 mm |
| Machining possibilities |  |
Kinematics & tools
- 4-station tool holder on the front tool post
- 2-station tool holder on the back tool post
- 4-spindle drilling unit including sleeves (front and rear side) on the back tool post
- 3 + α power-driven tools for cross machining on the front tool post
- 3 + α power-driven tools for cross machining on the back tool post
- 8 + α power-driven tools including sleeves for backworking on 6 stations
- 11 axes
SW
20
CNC automatic lathes
SW-20
The SW-20 CNC automatic lathe is equipped with 2 tool posts to enable overlapped machining on the front side, e.g. simultaneus balance cut machining, milling or cross drilling.
In addition, the SW-20 achieves unique value for money by using the latest FANUC 31i-B5 high speed control system.
![[Translate to English:] SW-20](/fileadmin/_processed_/5/e/csm_star_sw20_vorteile_d9c397484f.png)
Advantages
- FANUC 31i-B5 control system with electronic handwheel
- C axis control as standard on main and sub spindle
- fully independent backworking with 8 stations
- movable control panel
- 2 tool posts for simultaneous machining on the front side
- additional longitudinal axis on the tool post 3
- three fully independent tool systems
Specifications
| General information | SW-20 |
|---|---|
| Rapid traverse speed | up to 35 m/min |
| Dimensions | 2,588 x 1,150 x 1,765 mm |
| Weight | 3,400 kg |
| Coolant tank capacity | 150 litres |
| Main spindle side | SW-20 |
|---|---|
| Number of axes | 7 |
| Axes main spindle (headstock) | Z1 / C1 |
| Axes tool post 1 | X1 / Y1 |
| Axes tool post 2 | X3 / Y3 / Z3 |
| Max. machining diameter | 20 mm / 23 mm (option) |
| Max. headstock stroke | 205 mm |
| Max. main spindle drive power | 3.7 kW |
| Max. main spindle speed | 10,000 1/min |
| Tools on the tool post 1 | |
| Turning tools | 4 tools □ 12 mm / □ 16 mm (option) |
| Cross machining tools | 3 tools (ER16) |
| Max. cross machining drive power | 1.2 kW |
| Max. cross machining speed | 8,000 rpm |
| Tools on the tool post 2 | |
| Turning tools | 2 tools □ 12 mm / □ 16 mm (option) |
| Cross machining tools | 3 tools (ER16) |
| Max. cross machining drive power | 1.2 kW |
| Max. cross machining speed | 8,000 rpm |
| Drilling tools (4-spindle drilling unit) | 4 tools (ER16) |
| Sub spindle side | SW-20 |
|---|---|
| Number of axes | 4 |
| Axes sub spindle | X2 / Z2 / C2 |
| Vertical axis for backworking | Y2 |
| Max. chucking diameter | 20 mm / 23 mm (option) |
| Max. sub spindle drive power | 3.7 kW |
| Max. sub spindle speed | 10,000 rpm |
| Backworking tools | |
| Tool stations | 8 units (6 power-driven) |
| Max. backworking speed | 8,000 rpm |
Standard scope of delivery
- FANUC 31i-B5 control system with electronic handwheel
- 4-station tool holder on the front tool post
- 2-station tool holder on the back tool post
- 3 + α power-driven tools for cross machining on the front tool post
- 3 + α power-driven tools for cross machining on the back tool post
- 4-spindle drilling unit including sleeves (front and rear side) on the back tool post
- 8 + α power-driven tools including sleeves for backworking on 6 stations
- broken cut-off tool detector
- parts ejection detector
- sub spindle for backworking
- sub spindle air blow unit
- parts receptacle
- pneumatic unit with maintenance unit
- sub spindle parts ejection detector
- parts conveyor to remove the parts
- oil lubrication system
- separate coolant tank with level monitoring and coolant flow detector
- bar feeder interface
- levelling pads and adjustment screws
- worklight
- toolbox with special tools
- metric input
- tool nose radius compensation
- constant cutting speed for main and sub spindle
- multiple canned cycles
- operating hours display
- parts counter
- automatic power supply cut-off function
- interfaces to input and read data
- program sequence controllable with electronic handwheel
- cylindrical interpolation
- polar coordinate interpolation
- polygon machining
- bar feeding: bar feeder
- chip disposal: chip conveyor
- long parts ejector
- beacon: acc. to customer requirements
- high pressure unit: 50 to 300 bar
- fire protection: small fire extinguishing system
- complete filtration coolant
- Tools in the internet at www.star-tools.eu
Machining examples

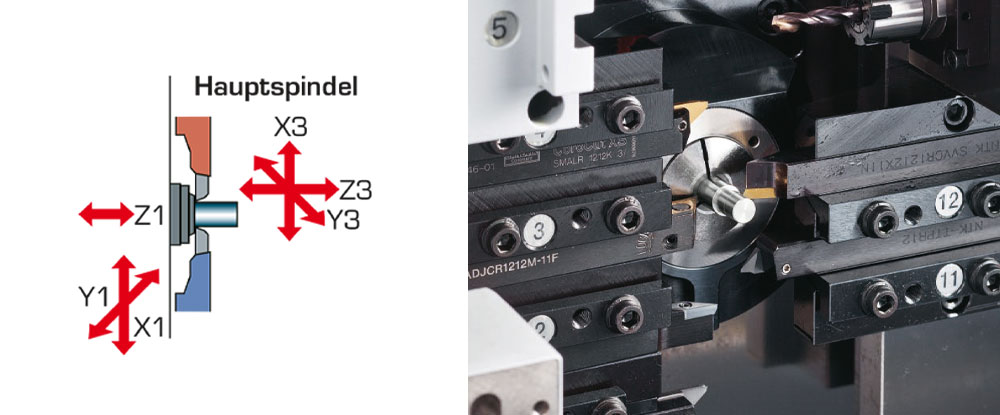

![[Translate to English:] Simultandrehen](/fileadmin/_processed_/8/e/csm_star_sw20_1_simultandrehen_3795a7d505.jpg "<strong> Simultaneous turning </strong><br>
Balance cut machining, whereby the cutting depth is programmed via the rear tool post and the Z3 axis.")

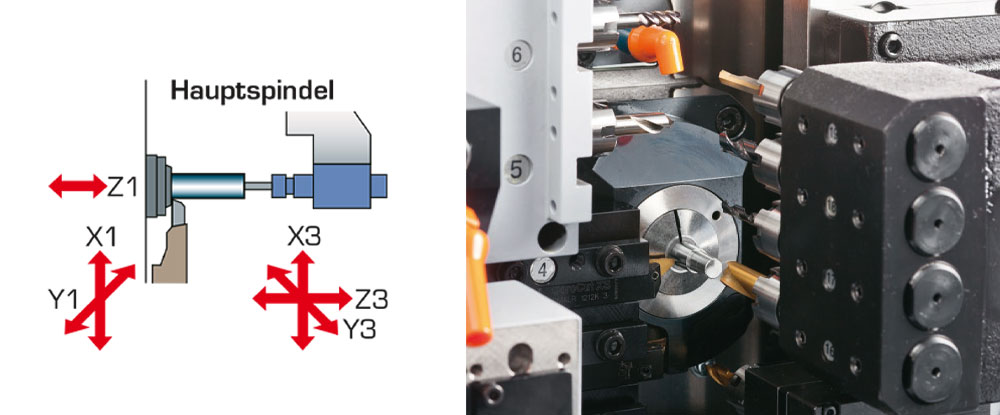

![[Translate to English:] Simultanbearbeitung](/fileadmin/_processed_/1/0/csm_star_sw20_2_simultanbearbeitung_edaed78c1e.jpg "<strong> Simultaneous machining </strong><br> Synchronous turning and drilling with different feeds. The ideal feed can be independently selected for the turning and drilling.")

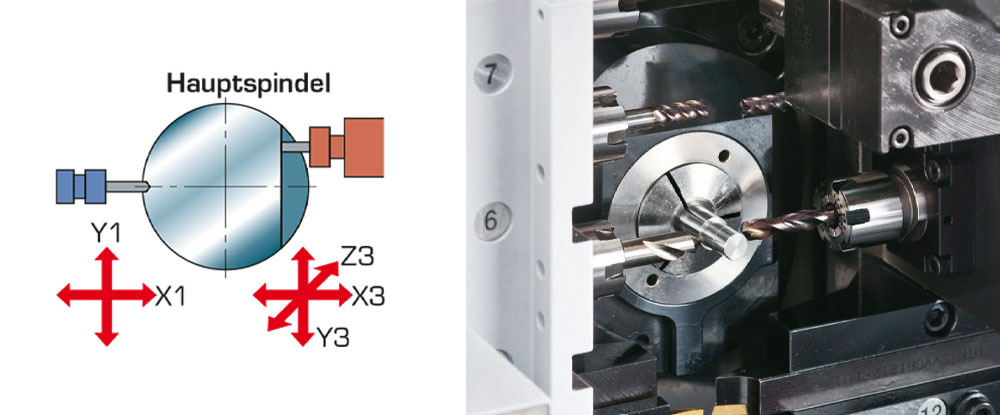

![[Translate to English:] Doppelseitige Querbearbeitung](/fileadmin/_processed_/c/0/csm_star_sw20_3_doppel_5aee79fe76.jpg "<strong> Counter face cross machining </strong><br>
Milling, slotting or, for example, cross drilling is simultaneously possible with independent feed and in different planes with overlapped machining.")
![[Translate to English:] Bearbeitung mit angetriebenen Werkzeugen](/fileadmin/_processed_/9/e/csm_star_sw20_4_bearbeitung_00aab8e6d6.jpg "<strong> Machining with power-driven tools </strong><br>
The SW-20 offers all possibilities for overlapped machining, e.g. milling on the front tool post and front drilling on the rear machining unit.")

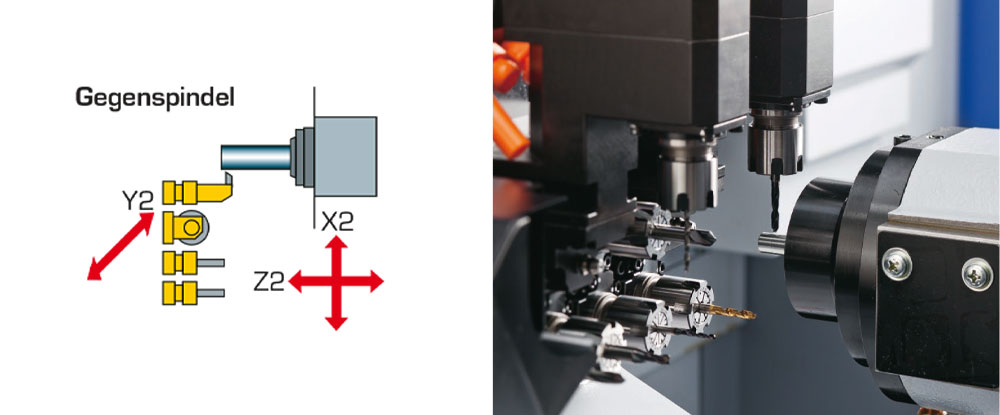

![[Translate to English:] Rückseitige Bearbeitung](/fileadmin/_processed_/d/f/csm_star_sw20_5_rueckseite_030d5315dd.jpg "<strong> Backworking </strong><br>
A backworking unit for overlapped machining is available with additional vertical axis, e.g. for cross drilling or slotting.")

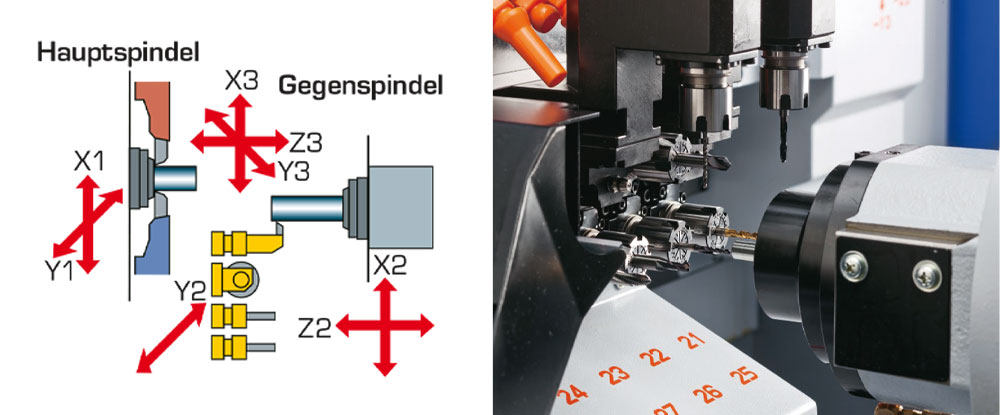

![[Translate to English:] Rückseitige Bearbeitung](/fileadmin/_processed_/a/6/csm_star_sw20_6_rueck_bearbeitung_9ec65b5225.jpg "<strong> Backworking </strong><br>
In addition, the part manufactured on the main spindle can be finished on the rear side with power-driven units, e.g. for milling, cross drilling, slotting, off-centre drilling, etc. with overlapped machining.")
Selection from our
range of tools
![[Translate to English:] 331-50](/fileadmin/_processed_/3/1/csm_star_331_50_ea311eff73.png)
![[Translate to English:] 571-51](/fileadmin/_processed_/3/a/csm_star_571_51_772c2e5eaf.png)
![[Translate to English:] 571-54](/fileadmin/_processed_/3/d/csm_star_571_54_eaf70cce39.png)
![[Translate to English:] 681-72](/fileadmin/_processed_/3/c/csm_star_681_72_4f0c9b6828.png)
Your advantages
with star Micronics
- Training
STAR Micronics GmbH offers special training sessions for machine operators. You as customer can decide whether to have the training in our company or on your premises. The training is naturally exclusively for your personnel and specifically designed for your range of parts. - High pressure unit
The machine can be retrofitted with high pressure units from 50 to 300 bar. In addition, other developments are available to you, such as programmable pressure control or complete filtration. - Cooling lubricants
The machine can be run with oil or with aqueous emulsions. However, we recommend the use of oil as this is far more beneficial to the longevity of the machine. - Bar feeder
All commonly available bar feeders (FMB/IEMCA/LNS) can be used with the machine. The software interface is included in the machine as standard.
- Chip conveyor
The machine can be fitted with a chip conveyor or a chip flushing system. - Peripherals
Peripheral components such as parts separators, purchased coolant units (oil/emulsion), coolant filters, fire protection systems and TPM (tool process monitoring) can also be offered. A retrofit of peripheral components is always possible. - Service
SSC star* Service Connect as 24/7 customer portal and online connectivity for your machines, tickets and service calls. A current overview can be called up at any time. In addition, you have access to the star* knowledge database
Müller Products can easily be combined with and configured to your star* machine.
