SX-38
type A/B
| Diameter | 38 mm / 42 mm (option) |
|---|---|
| Headstock stroke | 320 mm / 95 mm (fixed headstock lathe) |
| Machining possibilities |  |
Kinematics & tools
- 4-station tool holder on the tool post
- B axis programmable on the tool post with 4 power-driven tools (front and rear side)
- 3-station sleeve holder for high speed spindles on the B axis
- 10 + α tools for turning, drilling and cross machining on the turret
- 8 + α power-driven tools including sleeves for backworking
- 12 axes
SX
38
type A/B
THE NEW X CLASS
FROM STAR Micronics
The new star* SX-38 has several proven technologies under the hood. The flexible B-axis sits stable on the tool post and ensures the highest precision. The turret is designed with 10 stations for highly complex parts and can be used on the front and rear side. The flexible backworking on the turret or back block is of course possible without restriction of the front side machining.
![[Translate to English:] SX-38](/fileadmin/_processed_/0/a/csm_star_sx38_vorteile_407c6bdab9.png)
Advantages
- FANUC 31i-B5 control system with handle
- C axis control as standard on main and sub spindle
- fully independent backworking with 8 stations
- convertible from sliding headstock to fixed headstock lathe
- movable control panel
- tool post and turret for simultaneous machining on the front side
- additional longitudinal axis on tool post 3
- B axis programmable for main and sub spindle on the tool post
- three fully independent tool systems
- turret drive power 4 kW
Specifications
| General information | SX-38 type A | SX-38 type B |
|---|---|---|
| Number of axes | 12 | 12 |
| Max. rapid traverse speed | 30 m/min | 30 m/min |
| Weight | approx. 5,800 kg | approx. 5,800 kg |
| Coolant tank capacity | 375 litres | 375 litres |
| Dimensions (L x W x H) | approx. 3.405 x 1,430 x 2,005 mm | approx. 3.405 x 1,430 x 2,005 mm |
| Main spindle side | SX-38 type A | SX-38 type B |
|---|---|---|
| Number of axes | 8 | 8 |
| Axes main spindle (headstock) | Z1 / C1 | Z1 / C1 |
| Axes tool post | X1 / Y1 / B1 | X1 / Y1 / B1 |
| B axis on tool post | freely programmable | freely programmable |
| Axes turret | X3 / Y3 / Z3-axis | X3 / Y3 / Z3-axis |
| Max. machining diameter | 38 mm / 40 mm (option) / 42 mm (fixed headstock lathe) | 38 mm / 40 mm (option) / 42 mm (fixed headstock lathe) |
| Max. headstock stroke (sliding/fixed headstock) | 320 mm / 95 mm | 320 mm / 95 mm |
| Max. main spindle drive power | 11 kW | 11 kW |
| Max. main spindle speed | 7,000 1/min | 7,000 1/min |
| Tools on the tool post | ||
| Turning tools | 3 tools (□ 16 mm) / 1 tool (□ 20 mm) | 3 tools (□ 16 mm) / 1 tool (□ 20 mm) |
| Cross machining tools on the B axis |
4 tools (ER20) front side 4 tools (ER16) rear side |
4 tools (ER20) front side 4 tools (ER16) rear side |
| Max. cross machining drive power | 3.0 kW | 3.0 kW |
| Max. cross machining speed | 6,000 rpm | 6,000 rpm |
| Tools on the turret | ||
| No. of tool stations | 10 units (all power-driven) | 10 units (all power-driven) |
| Max. cross machining drive power | 4.0 kW | 4.0 kW |
| Max. cross machining speed | 5,700 rpm | 6,000 rpm |
| Sub spindle side | SX-38 type A | SX-38 type B |
|---|---|---|
| Number of axes | 4 | 4 |
| Axes sub spindle | X2 / Z2 / C2 | X2 / Z2 / C2 |
| Vertical axis for backworking | Y2 | Y2 |
| Max. chucking diameter | 42 mm | 42 mm |
| Max. sub spindle drive power | 11,0 kW | 11,0 kW |
| Max. sub spindle speed | 7,000 rpm | 7,000 rpm |
| Backworking tools | ||
| Tool stations | 8 units (8 power-driven) | 8 units (8 power-driven) |
| Max. backworking speed | 5,000 rpm | 5,000 rpm |
Standard scope of delivery
- FANUC 31i-B5 control system with handle
- C axis control on main and sub spindle
- synchronously driven guide bush unit
- convertible from sliding headstock to fixed headstock lathe
- 4-station tool holder on the tool post
- 4 + α power-driven tools for cross machining on the tool post
- B axis programmable on the tool post with 4 power-driven tools (front and rear side)
- 3-station sleeve holder for high-speed spindles on the B axis
- 10 + α power-driven tools for turning, drilling and cross machining on the turret
- 8 + α power-driven tools including sleeves for backworking
- broken cut-off tool detector
- parts ejection detector
- sub spindle for backworking
- sub spindle air blow unit
- parts receptacle
- pneumatic unit with maintenance unit
- sub spindle parts ejection detector
- parts conveyor to remove the parts
- oil lubrication system
- separate coolant tank with level monitoring and coolant flow detector
- bar feeder interface
- levelling pads and adjustment screws
- worklight
- toolbox with special tools
- metric input
- tool nose radius compensation
- constant cutting speed for main and sub spindle
- multiple canned cycles
- operating hours display
- parts counter
- automatic power supply cut-off function
- interfaces to input and read data
- program sequence controllable with handle
- cylindrical interpolation
- polar coordinate interpolation
- polygon machining
- 3D coordinate conversion mode
- bar feeding: bar feeder
- chip disposal: chip conveyor
- long parts ejector
- beacon: acc. to customer requirements
- high pressure unit: 50 to 300 bar
- fire protection: small fire extinguishing system
- complete filtration coolant
- Tools in the internet at www.star-tools.eu
Machining examples

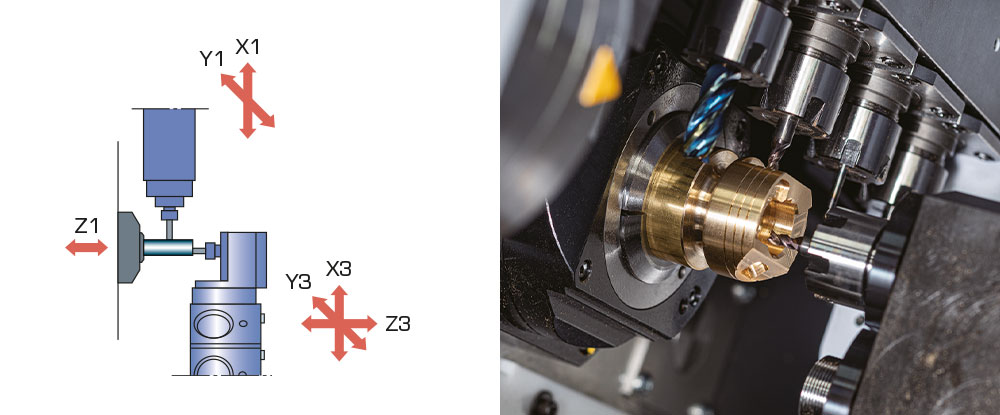

![[Translate to English:] Simultanbearbeitung](/fileadmin/_processed_/a/d/csm_star_sx38_simultanbearbeitung_215d895141.jpg "<strong> Simultaneous machining </strong><br>
Cross drilling and (front) milling or turning and drilling with different feeds. The right feed can be selected for the various machining operations.")

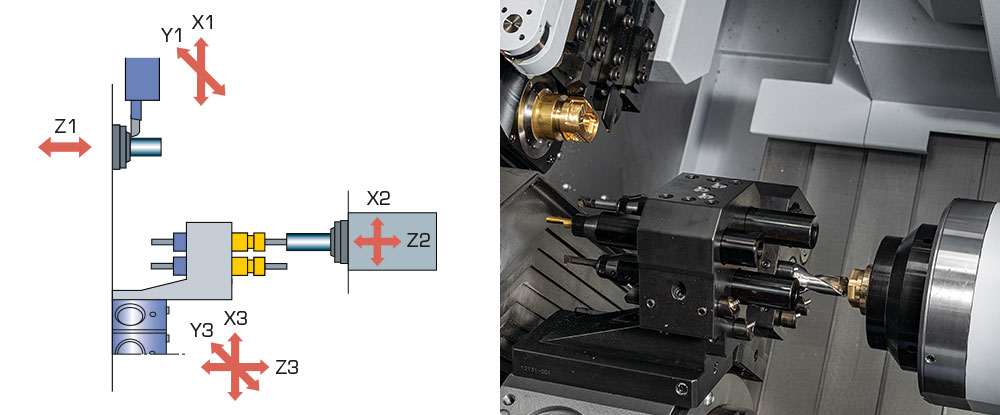

![[Translate to English:] Zeitverdeckte Bearbeitung](/fileadmin/_processed_/1/e/csm_star_sx38_zeitverdecktebearbeitung_0430f9c73e.jpg "<strong> Overlapped machining </strong><br>
Front machining on the tool post and backworking with the revolver is possible at the same time.")

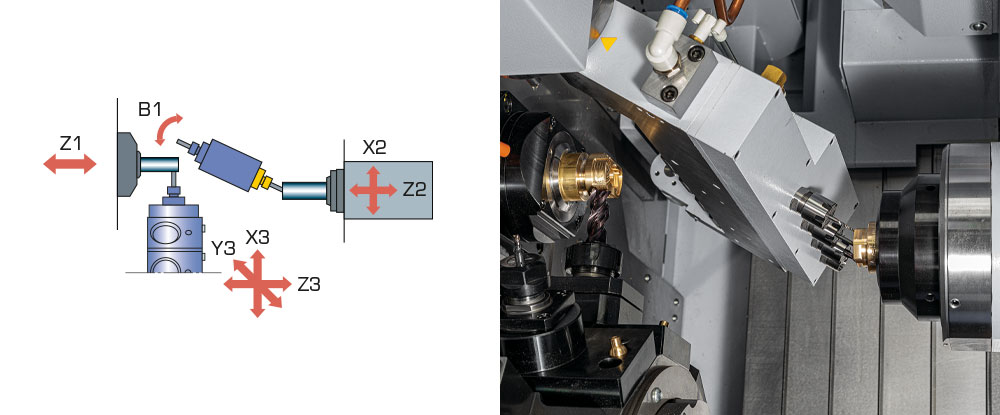

![[Translate to English:] Bewegliche B-Achse auf dem Linearschlitten](/fileadmin/_processed_/1/f/csm_star_sx38_bewegliche_achse_1c2b075b8d.jpg "<strong> Movable B axis on the tool post </strong><br>
Freely programmable B axis for flexible and exact angle programming on the main or rear side.")

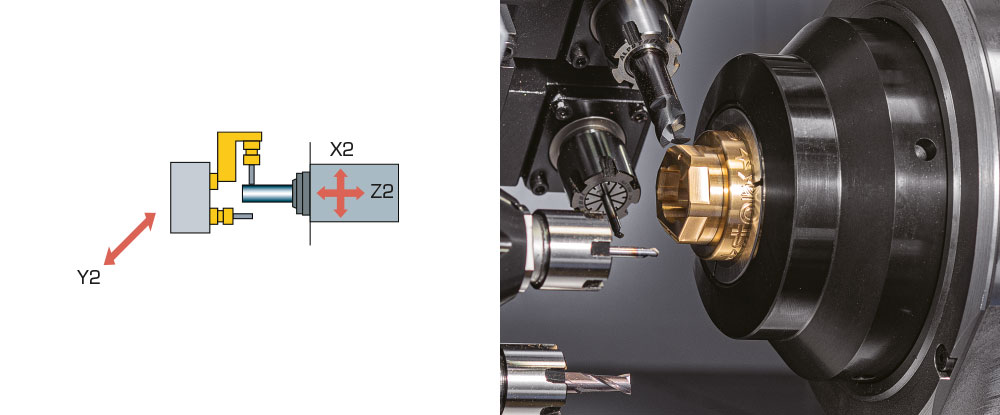

![[Translate to English:] Rückseitige Bearbeitung](/fileadmin/_processed_/c/5/csm_star_sx38_rueckseitigebearbeitung1_bdb910573c.jpg "<strong> Backworking </strong><br>
Fully independent backworking with additional vertical axis is available, e.g. for milling, turning, drilling, cross drilling or slotting.")

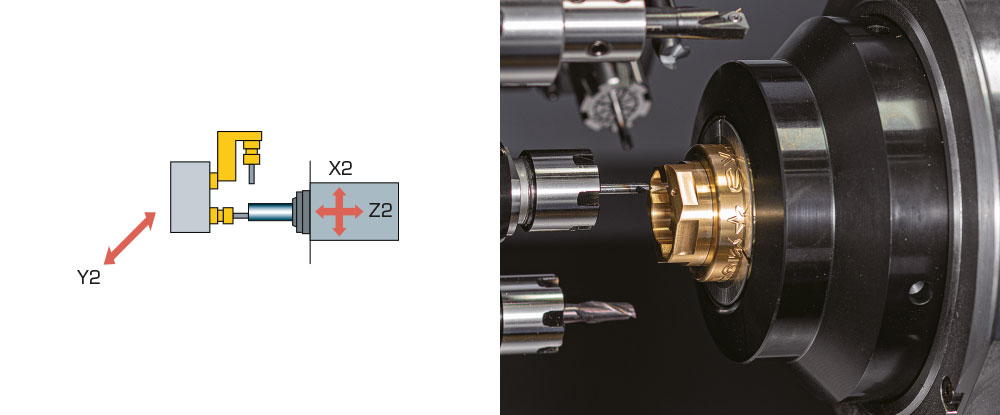

![[Translate to English:] Außermittige Bearbeitung](/fileadmin/_processed_/4/4/csm_star_sx38_aussermittigebearbeitung_d2efb14360.jpg "<strong> Off-centre machining </strong><br>
Off-centre machining on the rear side can be easily realised also for highly complex parts with high precision through an independent Y axis and a total of 4 axes.")

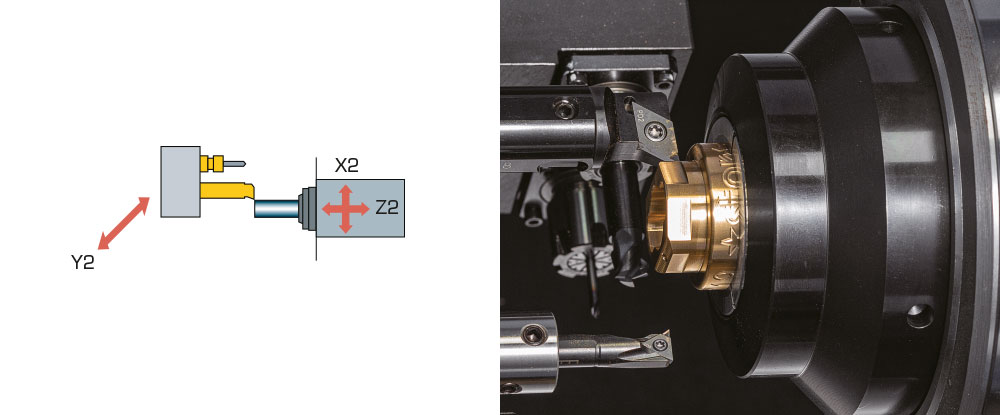

![[Translate to English:] Rückseitige Bearbeitung](/fileadmin/_processed_/c/e/csm_star_sx38_rueckseitigebearbeitung2_19e72e5720.jpg "<strong> Backworking </strong><br>
An additional vertical axis is available. This simplifies the setting of the centre height of turning tools.")
Selection from our
range of tools
![[Translate to English:] 121-02](/fileadmin/_processed_/8/f/csm_star_121_02_2bcb512700.png)
![[Translate to English:] 581-11](/fileadmin/_processed_/c/8/csm_star_581_11_1dc6d6fed2.png)
![[Translate to English:] 201-50](/fileadmin/_processed_/c/0/csm_star_201_50_9b5db22919.png)
![[Translate to English:] 431-51](/fileadmin/_processed_/e/0/csm_star_431_51_f71a115f4d.png)
![[Translate to English:] 431-63](/fileadmin/_processed_/a/d/csm_star_431_63_249ba696c7.png)
![[Translate to English:] 431-58](/fileadmin/_processed_/1/2/csm_star_431_58_b5c37e6880.png)
![[Translate to English:] 101-41](/fileadmin/_processed_/8/1/csm_star_101_41_b3c2fd8896.png)
![[Translate to English:] 331-50](/fileadmin/_processed_/3/1/csm_star_331_50_ea311eff73.png)
![[Translate to English:] 101-96](/fileadmin/_processed_/0/9/csm_star_101_96_fcef23f68f.png)
![[Translate to English:] 101-99](/fileadmin/_processed_/6/4/csm_star_101_99_457c856d28.png)
Your advantages
with star Micronics
- Training
STAR Micronics GmbH offers special training sessions for machine operators. You as customer can decide whether to have the training in our company or on your premises. The training is naturally exclusively for your personnel and specifically designed for your range of parts. - High pressure unit
The machine can be retrofitted with high pressure units from 50 to 300 bar. In addition, other developments are available to you, such as programmable pressure control or complete filtration. - Cooling lubricants
The machine can be run with oil or with aqueous emulsions. However, we recommend the use of oil as this is far more beneficial to the longevity of the machine. - Bar feeder
All commonly available bar feeders (FMB/IEMCA/LNS) can be used with the machine. The software interface is included in the machine as standard.
- Chip conveyor
The machine can be fitted with a chip conveyor or a chip flushing system. - Peripherals
Peripheral components such as parts separators, purchased coolant units (oil/emulsion), coolant filters, fire protection systems and TPM (tool process monitoring) can also be offered. A retrofit of peripheral components is always possible. - Service
